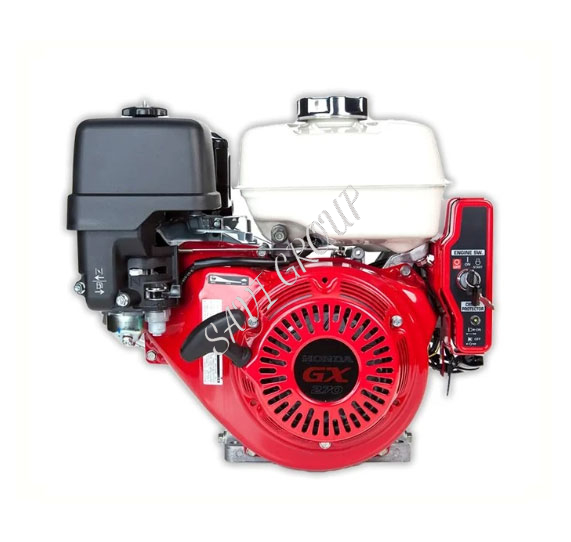

Honda GX270 QXE4 Electric Start Engine 1 Inch Shaft 9HP

With the GX270, you’re looking at one of the best engines in the business. More power. Quieter performance. Lower fuel consumption. Lower emissions. Better features. Exceptional performance. Honda’s GX series lives up to the legend, and then some.

COMMON APPLICATIONS

• Pressure washers
• Commercial lawn and garden equipment
• Tillers/cultivators
• Generators
• Forestry equipment
• Construction / industrial equipment
• Agricultural equipment
• Small vehicles
• Water pumps

Engine Specification

• Engine type – 4-stroke single cylinder OHV petrol engine 25° inclined cylinder horizontal shaft
• Cylinder sleeve type – Cast iron sleeve
• Bore x Stroke – 77 x 58 mm
• Displacement – 270 cc
• Compression ratio – 8.5 : 1
• Net power – 6.3 kW (8.4 HP) / 3600 rpm
• Cont. rated power – 4.6 kW (6.2 HP) / 3000 rpm
• Cont. rated power – 5.1 kW (6.8 HP) / 3600 rpm
• Max. net torque – 19.1 Nm (1.94 kgfm) / 2500 rpm
• Ignition system – Digital CDI with variable ignition timing
• Starter – Electric
• Fuel tank capacity – 5.3 Litre
• Fuel cons. at cont. rated power – 2.4 L/h – 3600 rpm
• Engine oil capacity – 1.1 Litre
• Dimensions (L x W x H) – 381 x 428 x 422 mm
• Dry weight – 25.8 kg
• Shaft diameter – 1 inch
• Oil alert – Yes
• Electric starter – Yes
