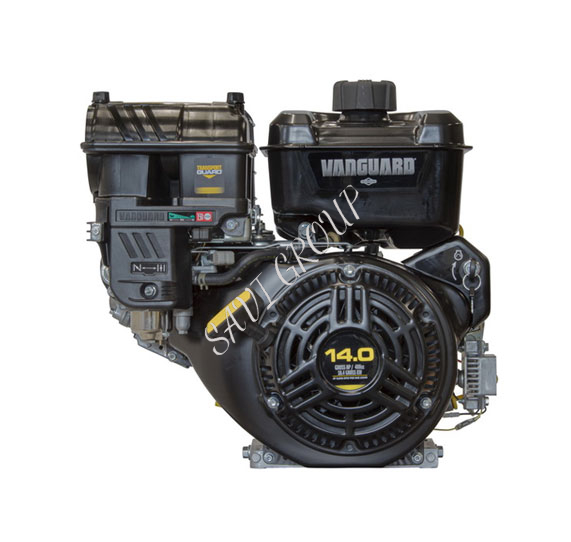

The Vanguard 400 is built from the ground up to deliver what your customers need to get the job done. It outperforms the rest with exclusive market-driven innovations like TransportGuard™ — a 3-in-1 control that eliminates oil/fuel dilution. Plus, it’s a drop-fit replacement, so no re-engineering is required. Upgrade to the Vanguard 400 — the OHV engine that drives demand for your brand.
SPECIFICATIONS
- Engine Type Single cylinder 4-stroke air-cooled OHV (Overhead
- Valve)
- Recoil Start Yes
- Electric Start (Key Start) Yes
- Model Number 25V3
- Gross kW* @ 3’600 rpm 10.4
- Gross HP* @ 3’600 rpm 14.0
- Displacement (cc) 408
- Cylinder Cast Iron Sleeve
- Bore (mm) 88.0
- Stroke (mm) 67.0
- Fuel Tank Capacity (l) 6.1
- Oil Capacity (l) 0.94
- Compression Ratio 8.3:1
- Air Cleaner Integrated Cyclonic Air Cleaner
- Ignition System CDI Ignition
- Lubrication System Splash Lubrication
- Length (mm) 359
- Width (mm) 444
- Height (mm) 459
- Dry Weight (kg) 35.5
- Commercial Warranty 3 + 1 Year Limited when registered with Briggs & Straton
| Weight | 36 kg |
|---|---|
| Dimensions | 34 × 45 × 46 cm |
