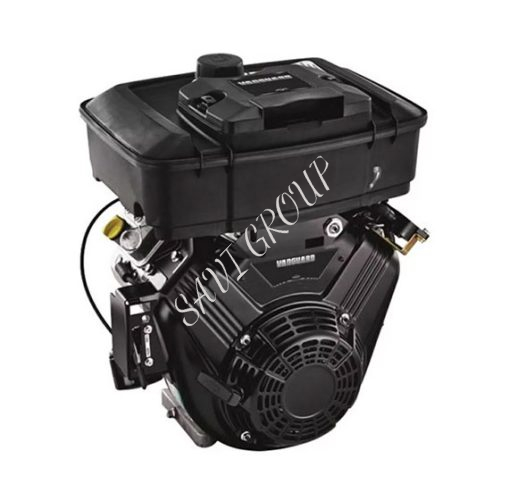

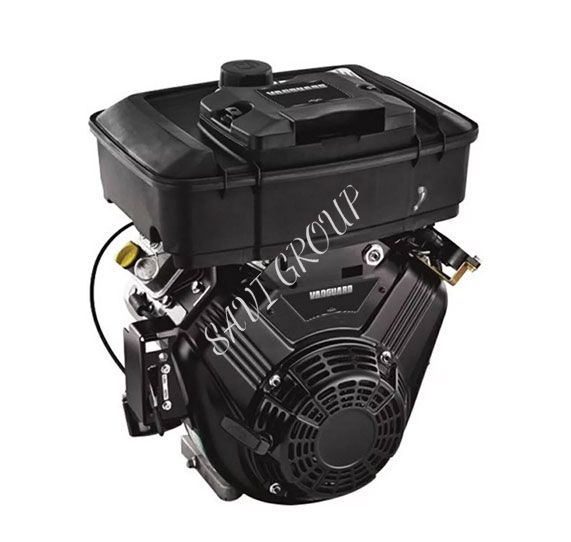

Vanguard™ V-Twin engines have been developed to perform in the most demanding commercial applications,
delivering power, performance and reliability. Application-engineered to power heavy-duty equipment, these
engines feature several advanced technologies and integrated components, ensuring the most
efficient and durable power source for the challenges in the commercial world. Backed by an industry-leading
global after-sales and support network, Vanguard V-Twin commercial-grade engines will keep delivering the
performance you can count on around the clock.
Specification
- Shaft Dimaeter1 Inch (25.4mm)
- Shaft Length3 Inch (76.2mm)
- Engine ConfigurationV-Twin 4-stroke air-cooled OHV (Overhead Valve)
- Model Number3564Gross kW* @ 3’600 rpm1343
- Gross HP* @ 3’600 rpm18.0
- Displacement (cc)570.0
- CylinderCast Iron sleeve bore (mm)72.0Stroke (mm)70.0
- Oil Capacity (l)1.7
- Fuel Tank Capacity 6.5L
- Charge Coil 16A
- Compression Ratio 8.2:1
- Ignition SystemMagnetron® Electronic Ignition
- Lubrication System Full Pressure Lubrication with Spin-On Oil Filter
- Length 318mm, Width 410mm, Height 438mm
- Dry Weight 33.6 Kg
- Fuel Tank Capacity6.5L
- Recoil/Yes, Electric Start /Yes
- Commercial Warranty 3 Year Limited
| Weight | 36 kg |
|---|---|
| Dimensions | 34 × 41 × 44 cm |
