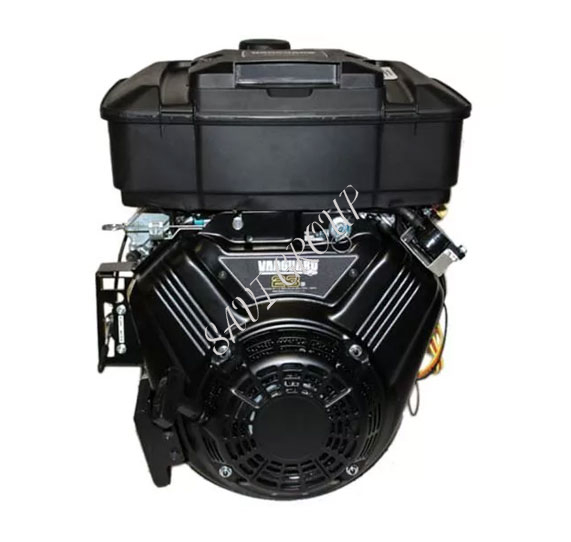

Vanguard™ V-Twin engines have been developed to perform in the most demanding commercial applications,
delivering power, performance and reliability. Application-engineered to power heavy-duty equipment, these
engines feature several advanced technologies and integrated components, ensuring the most
efficient and durable power source for the challenges in the commercial world. Backed by an industry-leading
global after-sales and support network, Vanguard V-Twin commercial-grade engines will keep delivering the
performance you can count on around the clock.
Specification
- Engine Fuel Petrol
- Displacement 627cc
- Crankshaft Diameter 1′ Inch (25.4mm)
- Crankshaft Length 3 Inch (76.2mm)
- Configuration Horizontal Cylinders Two
- Oil Capacity 1.4L
- Air Cleaner AIR CLEANER DUAL ELEMENT
- Charging Type 16 amp reg
- Idle Speed 1750 RPM
- Blower Housing NON-DUCTED AIR FLOW
- Bore Type Sleeve bore
- Bore Size 2.97 Stroke 2.75 Casing Clamps
- CASING CLAMP & SCREW WITHOUT
- Controls Groups W/OUT SUPPRESS AFTER FIR
- Cylinder Head CYLINDER TWIN W/C.I.SLEEVE
- Oil Drain OIL FILL IN VALVE COVER 1heel
- FLYWHEEL HEAVY EQUIP FOR ELEC START
- Fuel SystemFUEL SYSTEM WITH FUEL TANK
- Governor MECHANICAL GOVERNOR
- Exhaust MUFFLER WITHOUT
- Starting System STARTER 12 VOLT INDUSTRIAL
- Length 318 mm Width 441mm Height 547 mm Weight 35KG
- Fuel Tank Capacity 6.5L
- RecoilYes Electric StartYes
- Commercial Warranty 3 Year Limited
| Weight | 36 kg |
|---|---|
| Dimensions | 32 × 44.1 × 54.8 cm |
